Dimensions
215'
x
123'
Dimensions
65.53m
x
37.49m
To Grid
80'
To Grid
24.38m
Capacity
450tn
Capacity
408mt
Power
[7] 400A 3ø, [2] 200A 3ø
Power
[7] 400A 3ø, [2] 200A 3ø
Dimensions
215'
x
123'
Dimensions
65.53m
x
37.49m
To Grid
80'
To Grid
24.38m
Capacity
408mt
Power
[7] 400A 3ø, [2] 200A 3ø
Power
[7] 400A 3ø, [2] 200A 3ø
FOH SPEAKERS
✓
×
FOH Console
✓
×
Monitors
✓
×
MONITOR CONSOLE
✓
×
About the studio

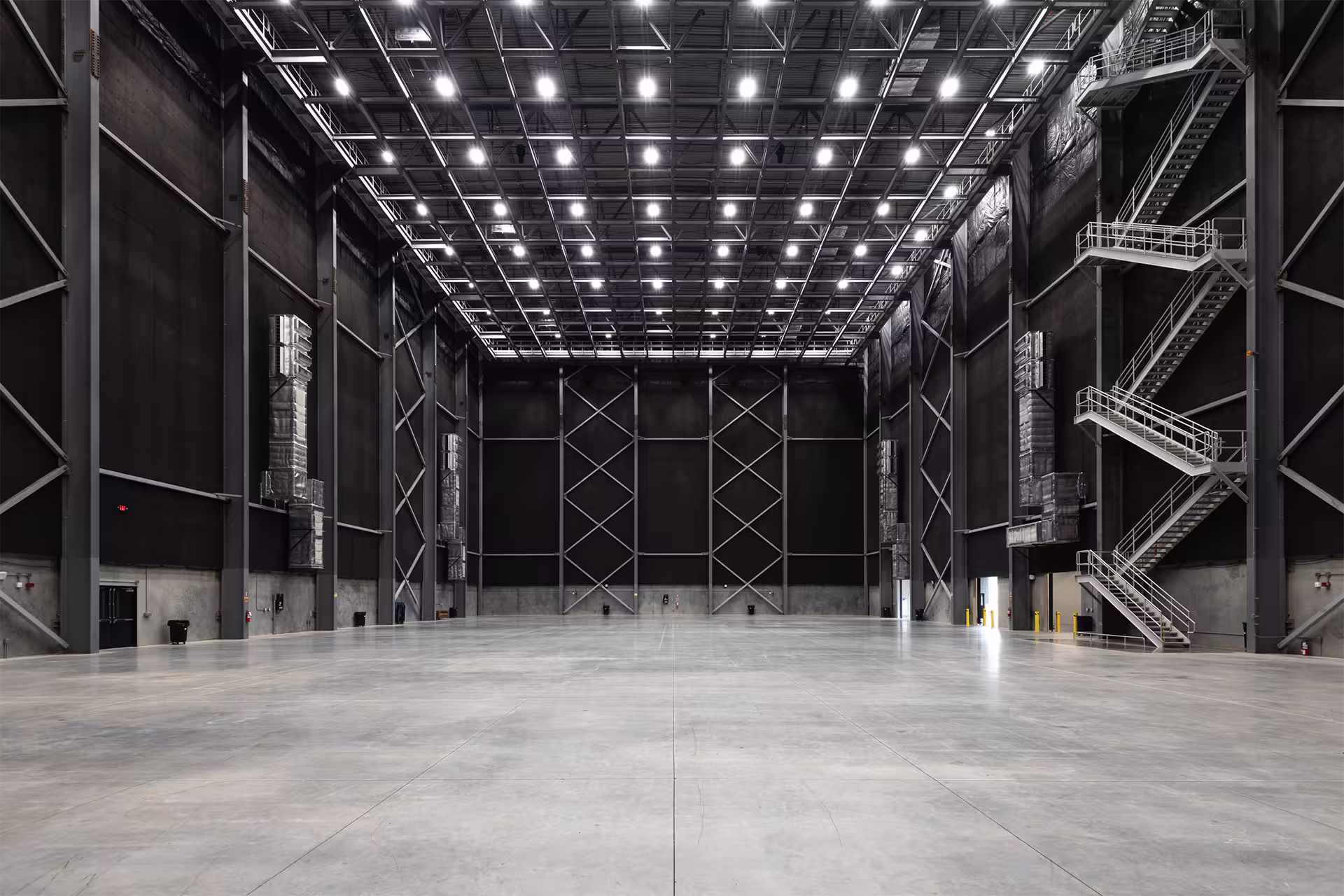

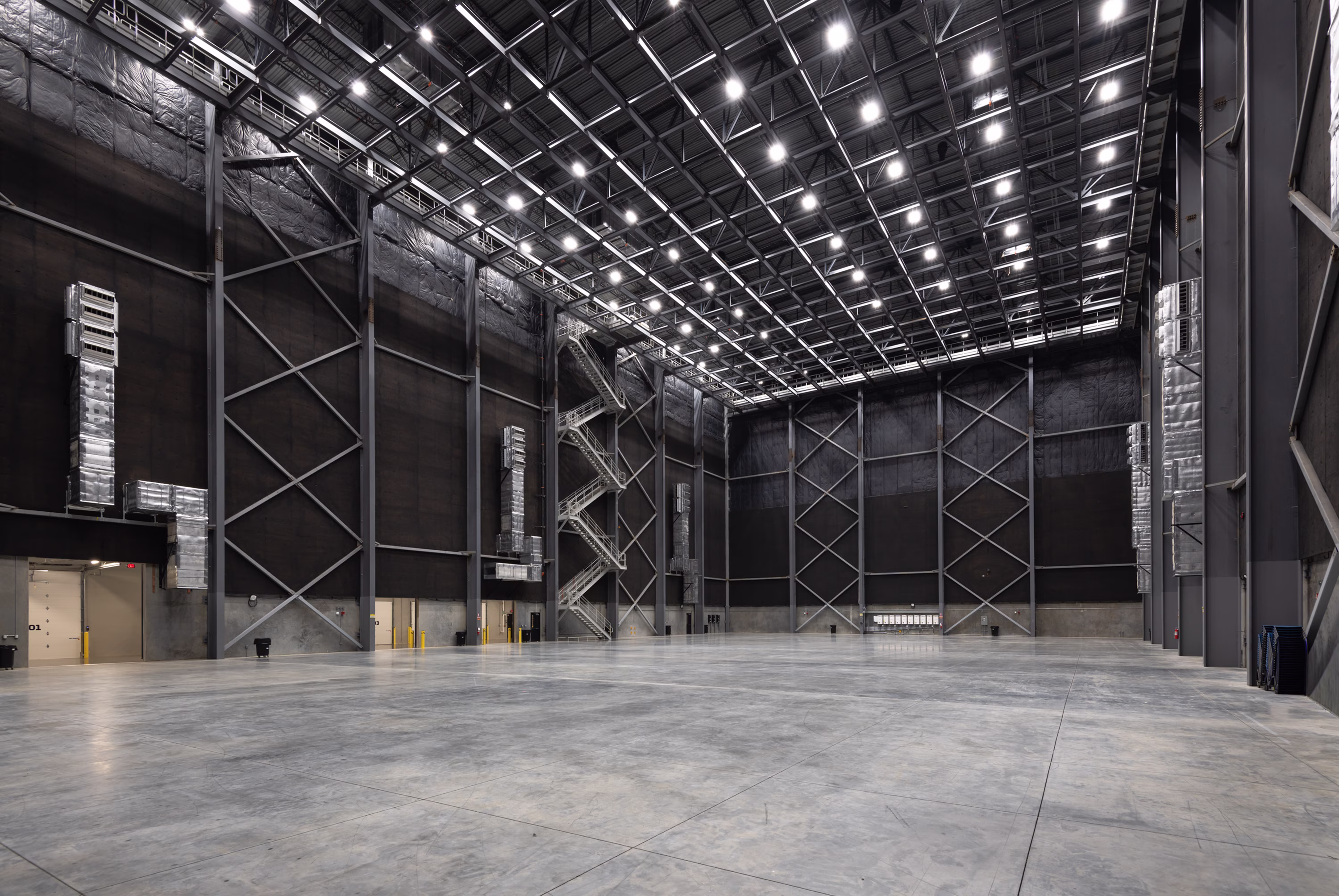

Soundcheck Studio 1 at Rock Nashville is the largest full production studio on campus, offering space, strength and support for large scale productions and rehearsals.

3200 Whites Creek Pike, Nashville TN 37207

Private Docks — #TBD
Dock Map .PDF ↓
Technical Packet .PDF ↓
Backline Information
FOH Speakers
FOH Console
Monitors
Monitor Console
No items found.
Slider left
Slider right
No items found.
Studio information
Studio Space
Main Studio Space
Loading Docks
Service Area
Power
Power
Power
Power
Main Entrance
room name
Dimensions
Specifications
Main Studio Space
123' x 215'
37.49m x 65.53m

26.45k sq/ft (2.45k sq/m) of uninterrupted floor space

Loading Docks
9' x 9'
2.74m x 2.74m

[4] Loading docks

Service Area
49' x 215'
14.93m x 65.53m

Production Offices, Dressing Rooms, Wardrobe Room, Catering Area, Conference Room

Power
N/A
N/A

[3] CL400

Power
N/A
N/A

[1] CL200

Power
N/A
N/A

[1] CL400

Power
N/A
N/A

[3] CL400

Main Entrance
N/A
N/A

Lobby reception area - small lounge

Service Areas
room name
Dimensions
Specifications
Dining Area
40' x 35'
12.19m x 10.66m

Seating for up to 50, kitchen

Production Office
23' x 36'
7m x 10.97m

Desks & Data for 8 people, small lounge area

Tour Office
11' x 12'
3.35m x 3.65m

Desk for 1 person

Tour Office
11' x 12'
3.35m x 3.65m

Desk for 1 person

Conference Room
13' x 22'
3.96m x 6.7m

1 Conference table with seating for 10 people

Wardrobe / Multi-Purpose Room
40' x 25'
12.19m x 7.62m

Can be configured to suit any need

Dressing Room
26' x 34'
7.92m x 10.36m

Fully furnished dressing room with private full bath

Dressing Room Restroom
20' x 13'
6.09m x 3.96m

Full bath - 1 toilet, 1 sink, 1 shower

Dressing Room
26' x 34'
7.92m x 10.36m

Fully furnished dressing room with private full bath

Dressing Room Restroom
20' x 13'
6.09m x 3.96m

Full bath - 1 toilet, 1 sink, 1 shower

Men's Restroom
10' x 23'
3.04m x 7.01m

2 stalls, 2 urinals, 3 sinks

Women's Restroom
10' x 23'
3.04m x 7.01m

4 stalls, 3 sinks

Rigging Specifications

8'x8' Rigging Grid, Horizontal Lifeline System,  Max 3-ton point load on any 8ft span, Max 50-tons on any truss girder, straight hangs only on W10x30 beams, Bridal loads allowed on W18x40 beams minimum of 5ft below grid

2.44m x 2.44m Rigging Grid, Horizontal Lifeline System, Max 2,722 kg point load on any 2.44m span, Max 45,359 kg on any truss girder, straight hangs only on W10x30 beams, bridal loads allowed on W18x40 beams with a minimum of 1.52m below the grid

Tech Packet .PDF
↓
Contact for .DWG
→
Max Capacity
450tn
408mt
Height to Ceiling
99'
44'
Height to Grid
80'
24.38m
Safety
Fall protection cable system installed
6′8″ above each beam in grid system
Fall protection cable system installed
2.03m above each beam in grid system
Full Specifications
Dimensions

Uninterrupted 123’x215’ open space. 26,445 sqft 80’ to grid, 26,875 sqft.

Rigging
ROOF CAPACITY

450 US ton / 900,000 lb load capacity

GRID SPECIFICATIONS
  • Grid: 8'x8' US Tons, 8'x24'
  • 8'x8' Rigging Grid, Horizontal Lifeline System
  • Max 3-ton point load on any 8ft span
  • Max 50-tons on any truss girder
  • Straight hangs only on W10x30 beams
  • Bridal loads allowed on W18x40 beams minimum of 5ft below grid
SAFETY

Fall protection cable system installed 6'8" above each beam in grid system.

Rooms
  • Main Studio Space - 123' x 215', 26.45k sq/ft of uninterrupted floor space
  • Production Office - 23' x 36', desks & data for 8 people, small lounge area
  • Tour Office - 11' x 12', desk for 1 person
  • Tour Office - 11' x 12', desk for 1 person
  • Tour Office - 11' x 12', desk for 1 person
  • Conference Room - 13' x 22', 1 conference table with seating for 10 people
  • Wardrobe / Multi-Purpose Room - 40' x 25', can be configured to suit any need
  • Dressing Room - 26' x 34', fully furnished dressing room with private full bath
  • Dressing Room Restroom - 20' x 13', full bath - 1 toilet, 1 sink, 1 shower
  • Dressing Room - 26' x 34', fully furnished dressing room with private full bath
  • Dressing Room Restroom - 20' x 13', full bath - 1 toilet, 1 sink, 1 shower
  • Men's Restroom - 10' x 23', 2 stalls, 2 urinals, 3 sinks
  • Women's Restroom - 10' x 23', 4 stalls, 3 sinks
  • Dining Area - 40' x 35', seating for up to 50, kitchen
Power
  • [7] 400A 3Ø 120/208V AC
  • [2] 200A 3Ø 120/208V AC
  • Dock [2] Shore Power – NEMA 14-50R Receptacle, 208V, 1Ø
  • Service Corridor [1] 400A 3Ø 480V AC
Load-in

[4] loading docks with levelers

Catering

Full service catering kitchen with private dining for crews, 40' x 35', Seating for up to 50

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Soundcheck Building, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.

Dimensions

Uninterrupted 37.49m x 65.53m open space. 2,456 sqm 24.38m to grid, 2,497 sqm.

Rigging
ROOF CAPACITY

408.23 metric tons / 408,233 kg load capacity

GRID SPECIFICATIONS
  • Grid: 2.44 m x 2.44 m; 2.44 m x 7.32 m
  • 2.44 m x 2.44 m rigging grid, horizontal lifeline system
  • Max 2.72 metric ton point load on any 2.44 m span
  • Max 45.36 metric tons on any truss girder
  • Straight hangs only on W10x30 beams
  • Bridal loads allowed on W18x40 beams minimum of 1.52 m below grid
SAFETY

Fall protection cable system installed 2.03 m above each beam in grid system.

Rooms
  • Main Studio Space - 37.49m x 65.63m, 26.45k sq/ft of uninterrupted floor space
  • Production Office - 7m x 10.97m, desks & data for 8 people, small lounge area
  • Tour Office - 3.35m x 3.65m, desk for 1 person
  • Tour Office - 3.35m x 3.65m, desk for 1 person
  • Tour Office - 3.35m x 3.65m, desk for 1 person
  • Conference Room - 3.96m x 6.7m, 1 conference table with seating for 10 people
  • Wardrobe / Multi-Purpose Room - 12.19m x 7.62m, can be configured to suit any need
  • Dressing Room - 7.92m x 10.36m, fully furnished dressing room with private full bath
  • Dressing Room Restroom - 6.09m x 3.96m, full bath - 1 toilet, 1 sink, 1 shower
  • Dressing Room - 7.92m x 10.36m, fully furnished dressing room with private full bath
  • Dressing Room Restroom - 6.09m x 3.96m, full bath - 1 toilet, 1 sink, 1 shower
  • Men's Restroom - 3.04m x 7.01m, 2 stalls, 2 urinals, 3 sinks
  • Women's Restroom - 3.04m x 7.01m, 4 stalls, 3 sinks
  • Dining Area - 12.19m x 10.66m, seating for up to 50, kitchen
Power
  • [7] 400A 3Ø 120/208V AC
  • [2] 200A 3Ø 120/208V AC
  • Dock [2] Shore Power – NEMA 14-50R Receptacle, 208V, 1Ø
  • Service Corridor [1] 400A 3Ø 480V AC
Load-in

[4] loading docks with levelers

Catering

Full service catering kitchen with private dining for crews, 12.19m x 10.66m, Seating for up to 50

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Soundcheck Building, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.
