Studio 2

No items found.
No items found.
Studio 4 is reserved for educational use. If you are interested in use of Studio 4, please contact booking@rocklititz.com
Close button
Dimensions
123'
x
99'
Dimensions
37.49m
x
30.17m
To Grid
65'
To Grid
19.81m
Capacity
250tn
Capacity
226mt
Power
[4] 400A 3ø, [2] 200A 3ø
Power
[4] 400A 3ø, [2] 200A 3ø
Dimensions
123'
x
99'
Dimensions
37.49m
x
30.17m
To Grid
65'
To Grid
19.81m
Capacity
226mt
Power
[4] 400A 3ø, [2] 200A 3ø
Power
[4] 400A 3ø, [2] 200A 3ø
FOH SPEAKERS
✓
×
FOH Console
✓
×
Monitors
✓
×
MONITOR CONSOLE
✓
×

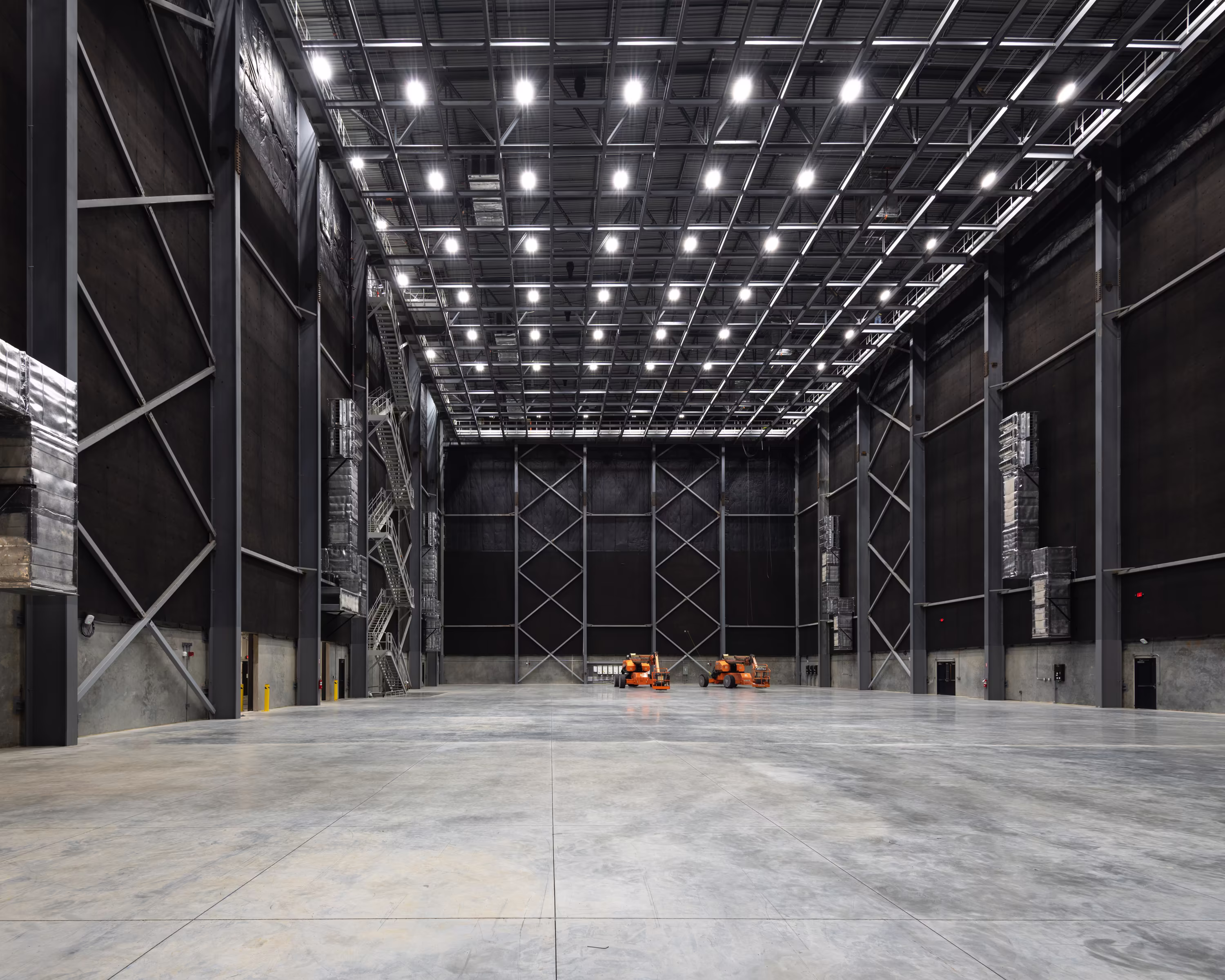

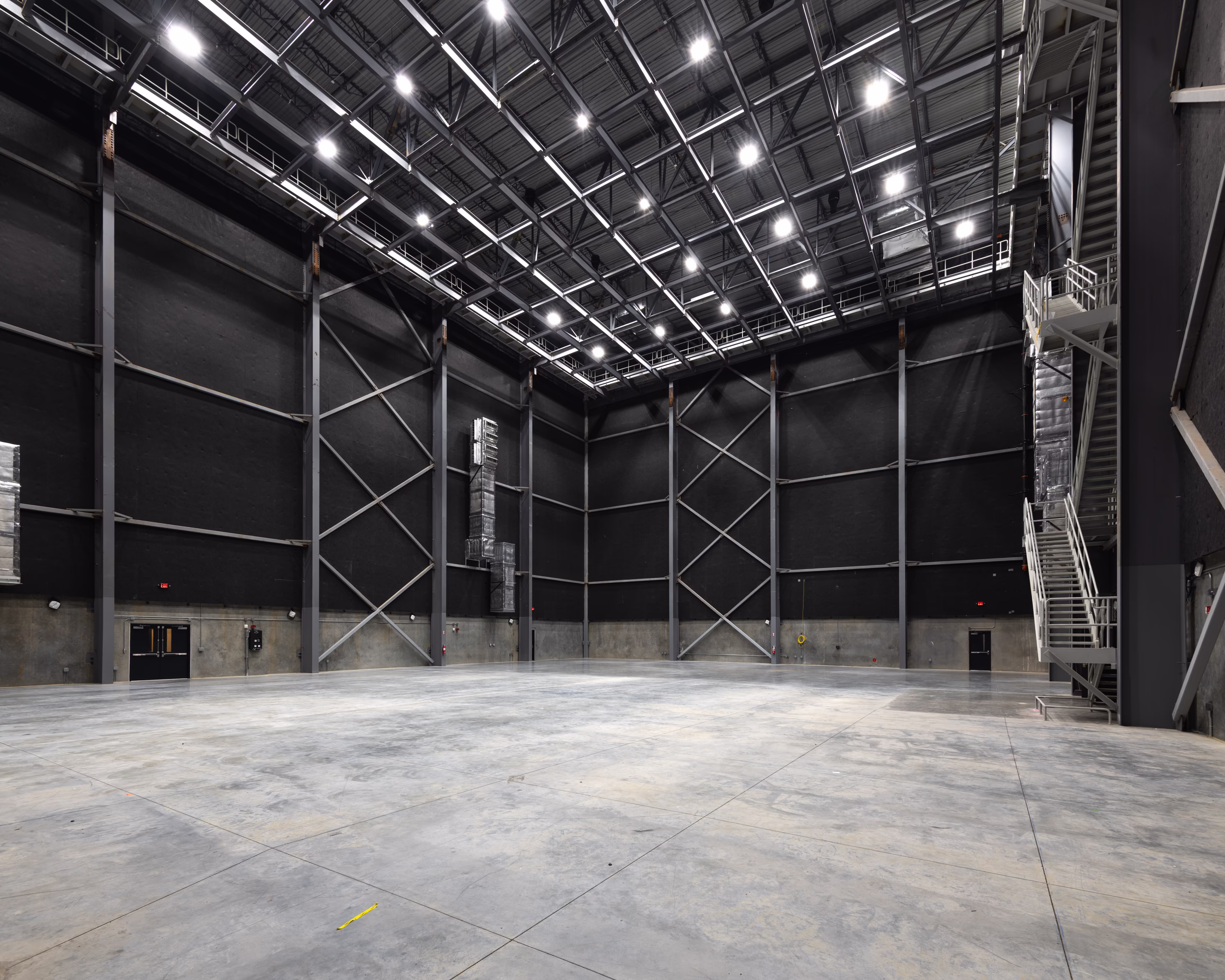

About the studio

Soundcheck Studio 2 at Rock Nashville is ideal for full production rehearsals, offering space, strength and support.

3200 Whites Creek Pike, Nashville TN 37207

Shared Docks
Dock Map .PDF ↓
Technical Packet .PDF ↓
Backline Information
FOH Speakers
FOH Console
Monitors
Monitor Console
No items found.
Slider left
Slider right
No items found.
Studio information
Studio Space
Main Studio Space
Loading Docks
Service Area
Power
Power
Power
Storage Area
Main Entrance
room name
Dimensions
Specifications
Main Studio Space
123' x 99'
37.49m x 30.17m

12.17k sq/ft (1.13k sq/m) of uninterrupted floor space

Loading Docks
9' x 9'
2.74m x 2.74m

Common Docks

Service Area
49' x 123'
14.93m x 37.49m

Production Offices, Dressing Rooms, Catering Area

Power
N/A
N/A

[1] CL200, [2] CL400

Power
N/A
N/A

[1] CL200

Power
N/A
N/A

[2] CL400

Storage Area
N/A
N/A

Dead case storage

Main Entrance
N/A
N/A

Reception area - small lounge

Service Areas
room name
Dimensions
Specifications
Dining Area
40' x 30'
12.19m x 9.14m

Seating for up to 50, kitchen

Production Office
40' x 26'
12.19m x 7.92m

Desks & Data for 8 people, small lounge area

Tour Office
11' x 10'
3.35m x 3.04m

Desk for 1 person

Tour Office
11' x 10'
3.35m x 3.04m

Desk for 1 person

Dressing Room
21' x 21'
6.4m x 6.4m

Fully furnished dressing room with private full bath

Dressing Room Restroom
14' x 16'
4.26m x 4.87m

Full bath - 1 toilet, 1 sink, 1 shower

Dressing Room
21' x 21'
6.4m x 6.4m

Fully furnished dressing room with private full bath

Dressing Room Restroom
14' x 16'
4.26m x 4.87m

Full bath - 1 toilet, 1 sink, 1 shower

Women's Restroom
10' x 23'
3.04m x 7.01m

4 stalls, 3 sinks

Men's Restroom
10' x 23'
3.04m x 7.01m

2 stalls, 2 urinals, 3 sinks

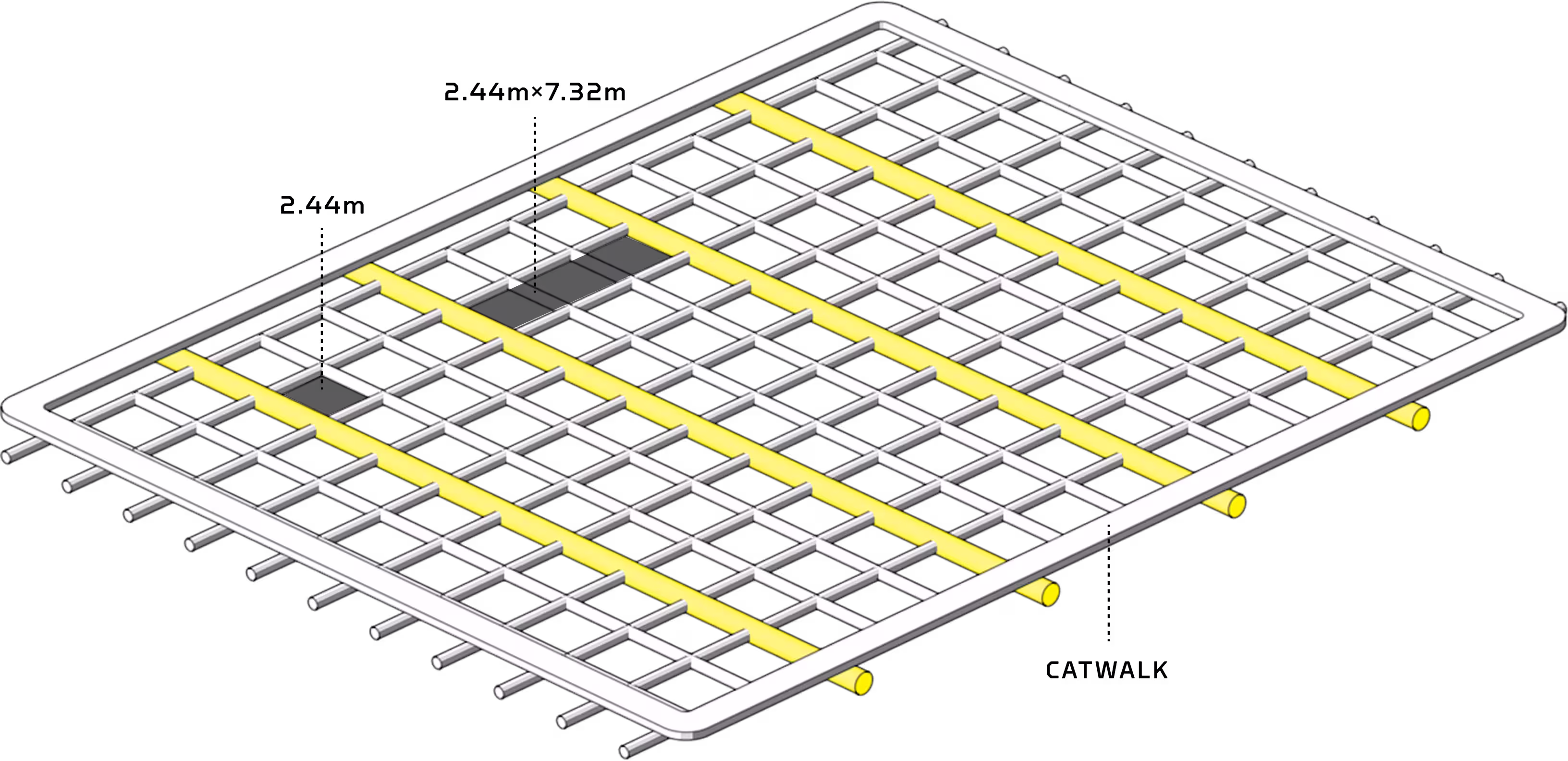

Rigging Specifications

8'x8' Rigging Grid, Horizontal Lifeline System, Max 3-ton point load on any 8ft span, Max 50-tons on any truss girder, straight hangs only on W10x30 beams, Bridal loads allowed on W18x40 beams minimum of 5ft below grid

2.44m x 2.44m Rigging Grid, Horizontal Lifeline System, Max 2,722 kg point load on any 2.44m span, Max 45,359 kg on any truss girder, straight hangs only on W10x30 beams, bridal loads allowed on W18x40 beams with a minimum of 1.52m below the grid

Tech Packet .PDF
↓
Contact for .DWG
→
Max Capacity
250tn
226mt
Height to Ceiling
99'
44'
Height to Grid
65'
19.81m
Safety
Fall protection cable system installed
6′8″ above each beam in grid system
Fall protection cable system installed
2.03m above each beam in grid system
Full Specifications
Dimensions

Uninterrupted 123’x 99’ open space. 12,177 sqft, 65’ to grid

Rigging
ROOF CAPACITY

250 US ton / 500,000 lb load capacity

GRID SPECIFICATIONS
  • Grid: 8'x8', or 8'x16'
  • 8'x8' Rigging Grid, Horizontal Lifeline System
  • Max 3-ton point load on any 8ft span
  • Max 50-tons on any truss girder
  • Straight hangs only on W10x30 beams
  • Bridal loads allowed on W18x40 beams minimum of 5ft below grid
SAFETY

Fall protection cable system installed 6'8" above each beam in grid system.

Rooms
  • Main Studio Space - 123' x 99', 12.17k sq/ft of uninterrupted floor space
  • Dining Area - 40' x 30', seating for up to 50, kitchen
  • Production Office - 40' x 26', desks & data for 8 people, small lounge area
  • Tour Office - 11' x 10', desk for 1 person
  • Tour Office - 11' x 10', desk for 1 person
  • Dressing Room - 21' x 21', fully furnished dressing room with private full bath
  • Dressing Room Restroom - 14' x 16', full bath - 1 toilet, 1 sink, 1 shower
  • Dressing Room - 21' x 21', fully furnished dressing room with private full bath
  • Dressing Room Restroom - 14' x 16', full bath - 1 toilet, 1 sink, 1 shower
  • Women's Restroom - 10' x 23', 4 stalls, 3 sinks
  • Men's Restroom - 10' x 23', 2 stalls, 2 urinals, 3 sinks
Power
  • [4] 400A 3Ø 120/208V AC
  • [2] 200A 3Ø 120/208V AC
  • Dock: [2] Shore Power – NEMA 14-50R Receptacle, 208V, 1Ø
  • Service Corridor [1] 400A 3Ø 480V AC
Load-in

Common Docks

Catering

Full service catering kitchen with private dining for crews, 40' x 30', seating for up to 50

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Soundcheck Building, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.

Dimensions

Uninterrupted 30.17mx37.49m open space. 1131.28 sqm, 19.81m to grid

Rigging
ROOF CAPACITY

226 metric tons / 226,000 kg load capacity

GRID SPECIFICATIONS
  • Grid: 8'x8', 8'x16'
  • 2.44m x 2.44m rigging grid, horizontal lifeline system
  • Max 2,722 kg point load on any 2.44m span
  • Max 45,359 kg on any truss girder
  • Straight hangs only on W10x30 beams
  • Bridal loads allowed on W18x40 beams with a minimum of 1.52m below the grid
SAFETY

Fall protection cable system installed 2m above each beam in grid system

Rooms
  • Main Studio Space - 37.49m x 30.17m, 1,134 sq/m of uninterrupted floor space
  • Dining Area - 12.19m x 9.14m, seating for up to 50, kitchen
  • Production Office - 12.19m x 7.92m, desks & data for 8 people, small lounge area
  • Tour Office - 3.35m x 3.04m, desk for 1 person
  • Tour Office - 3.35m x 3.04m, desk for 1 person
  • Dressing Room - 6.4m x 6.4m, fully furnished dressing room with private full bath
  • Dressing Room Restroom - 4.26m x 4.87m, full bath - 1 toilet, 1 sink, 1 shower
  • Dressing Room - 6.4m x 6.4m, fully furnished dressing room with private full bath
  • Dressing Room Restroom - 4.26m x 4.87m, full bath - 1 toilet, 1 sink, 1 shower
  • Women's Restroom - 3.04m x 7.01m, 4 stalls, 3 sinks
  • Men's Restroom - 3.04m x 7.01m, 2 stalls, 2 urinals, 3 sinks
Power
  • [4] 400A 3Ø 120/208V AC
  • [2] 200A 3Ø 120/208V AC
  • Dock: [2] Shore Power – NEMA 14-50R Receptacle, 208V, 1Ø
  • Service Corridor [1] 400A 3Ø 480V AC
Load-in

Common Docks

Catering

Full service catering kitchen with private dining for crews, 12.19m x 9.14m, seating for up to 50

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Soundcheck Building, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.
