Studio 4 is reserved for educational use. If you are interested in use of Studio 4, please contact booking@rocklititz.com
Close button
Dimensions
77'
x
70'
Dimensions
23.46m
x
21.33m
To Grid
26'11"
To Grid
8.2m
Capacity
40tns
Capacity
36.28mt
Power
[1] 400A 3ø, [1] 200A 3ø, [1] 100A 3ø, [2] L21-30
Power
[1] 400A 3ø, [1] 200A 3ø, [1] 100A 3ø, [2] L21-30
Dimensions
77'
x
70'
Dimensions
23.46m
x
21.33m
To Grid
26'11"
To Grid
8.2m
Capacity
36.28mt
Power
[1] 400A 3ø, [1] 200A 3ø, [1] 100A 3ø, [2] L21-30
Power
[1] 400A 3ø, [1] 200A 3ø, [1] 100A 3ø, [2] L21-30
FOH SPEAKERS
✓
×
FOH Console
✓
×
Monitors
✓
×
MONITOR CONSOLE
✓
×
About the studio

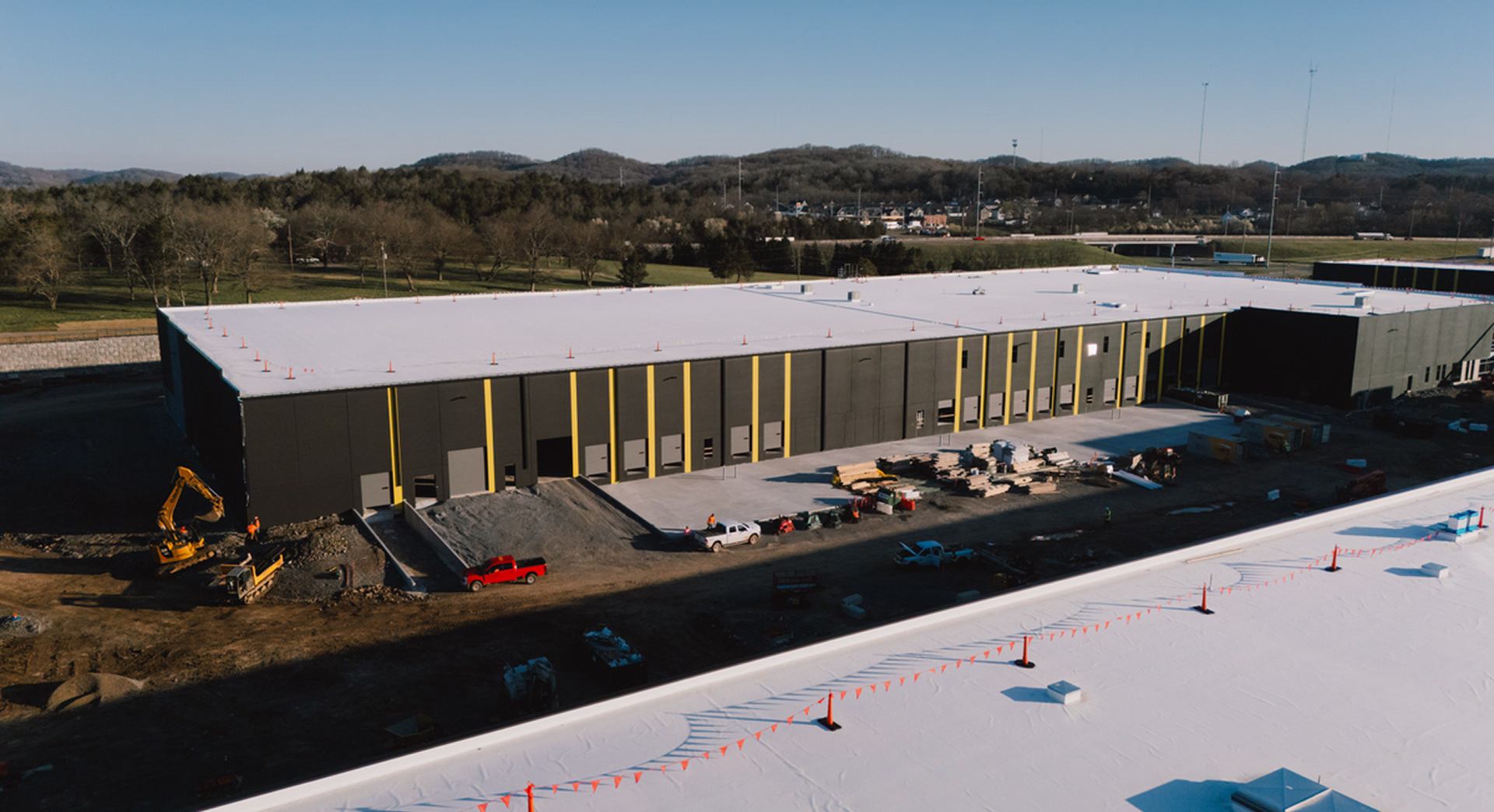

Soundcheck Studios 3, Rooms A + B are efficient and flexible spaces for band and crews to rehearse. Opens to shared, common hall with 14 docks, load in through a large soundproof door.

3200 Whites Creek Pike, Nashville TN 37207

Shared Docks
Dock Map .PDF ↓
Technical Packet .PDF ↓
Backline Information

Rental of Soundcheck Studios 3 includes access to a state-of-the-art Cohesion front-of-house PA system, providing exceptional audio quality for rehearsals.

FOH Speakers

Flown PA: CO10 (80°) Cohesion Line Array - [3] per side
Ground stacked on carts: CP218-11+ Self-powered subwoofer - [1] per side

FOH Console

N/A

Monitors

N/A

Monitor Console

N/A

No items found.
Slider left
Slider right
No items found.
Studio information

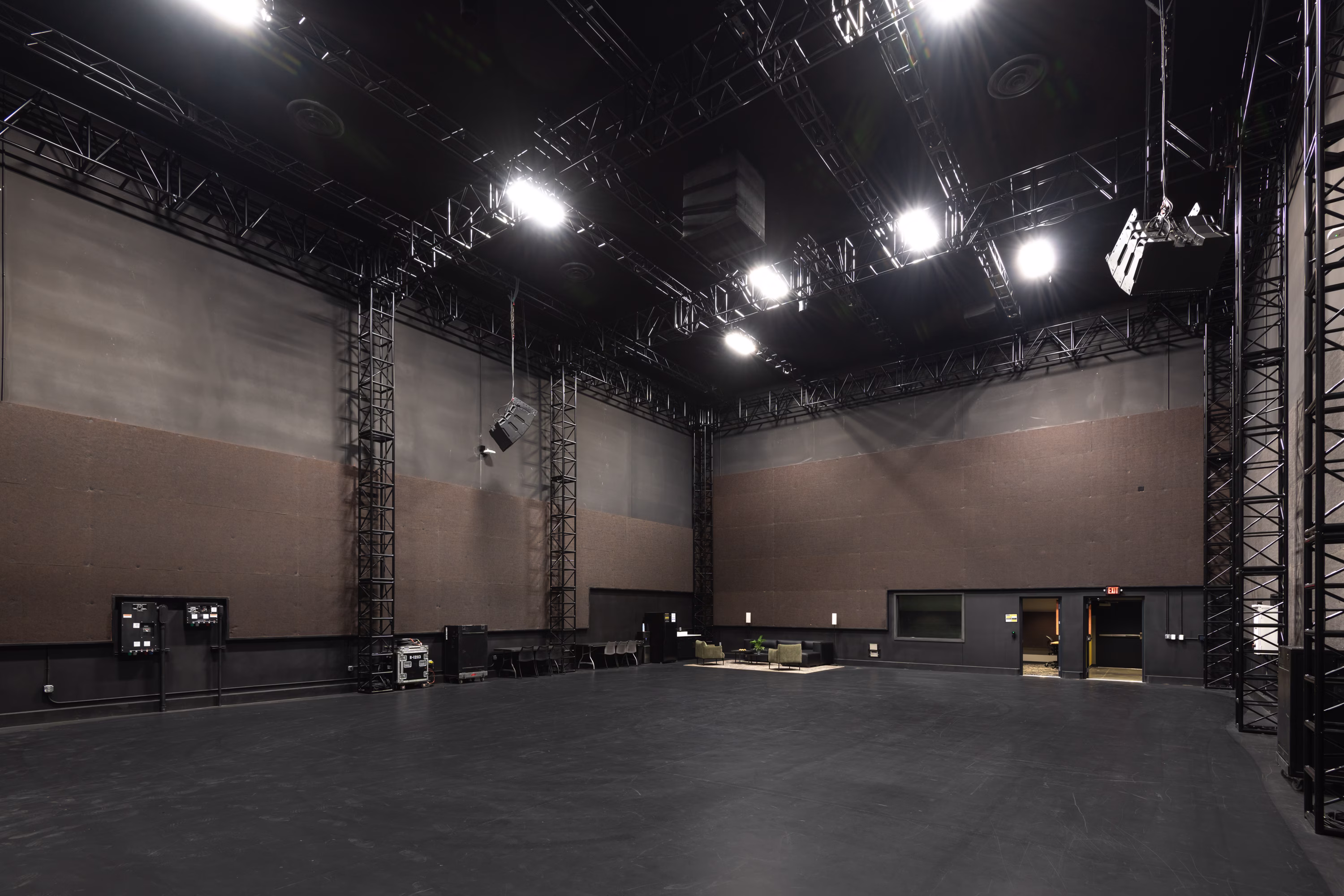

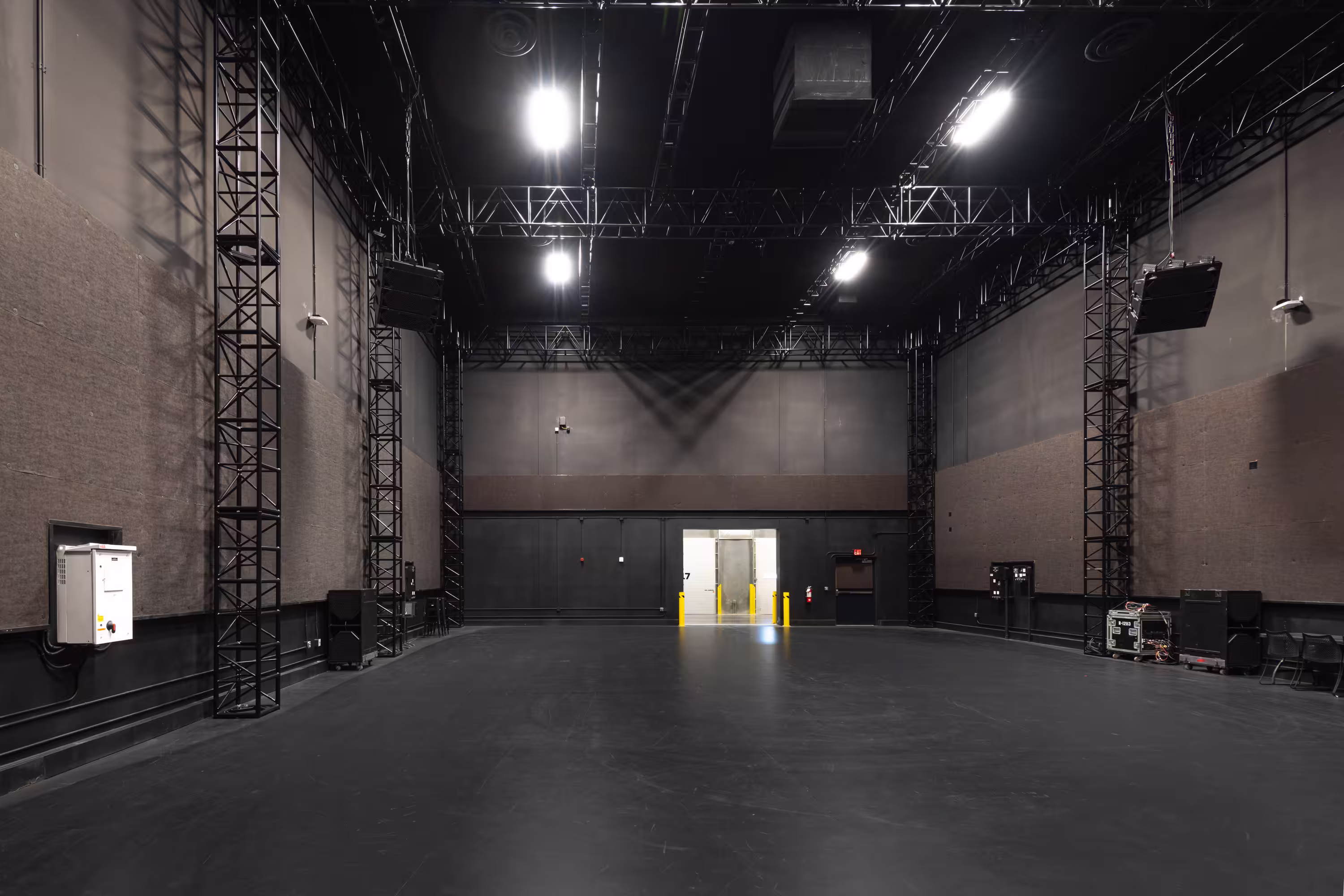

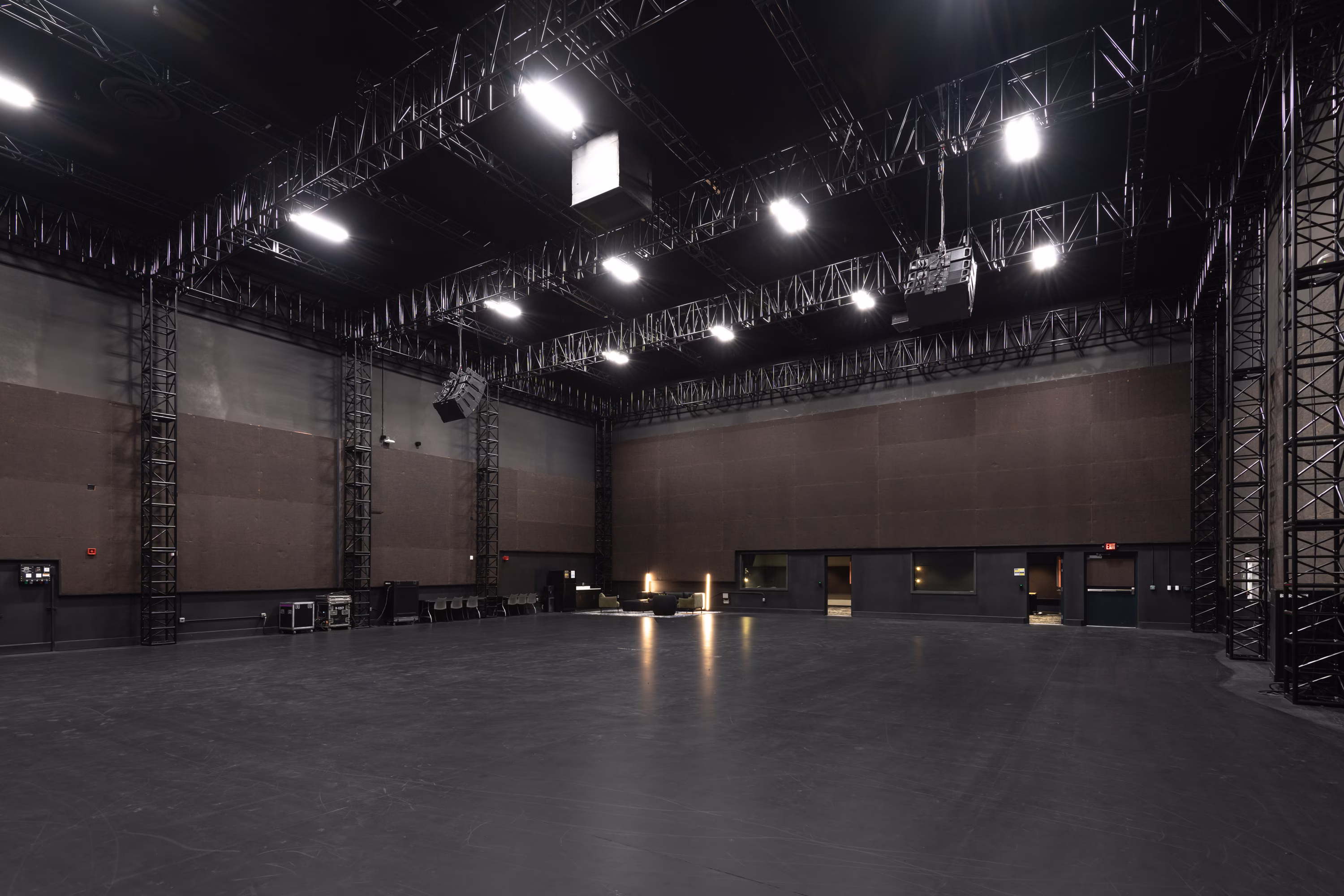

Studio Space
Main Studio Space
Private Restroom
Main Entrance
Production Office
Mix Room
Add-on Office
Power
Power
Power
Kitchenette
room name
Dimensions
Specifications
Main Studio Space
76'6" x 70'
23.46m x 21.33m

5355 sq/ft (497.5 sq/m) of uninterrupted floor space

Private Restroom
7'6" x 7'6"
2.2m x 2.2m

Single use restroom

Main Entrance
N/A
N/A

Breezeway with access to private restroom

Production Office
17'6" x 14'2"
5.18m x 4.26m

Desks & Data for 2 people, small lounge area

Mix Room
19' x 15'
5.79m x 4.50m

TBD

Add-on Office
N/A
N/A

Additional production office available at request

Power
N/A
N/A

[1] CL400

Power
N/A
N/A

[1] CL200, [1] CL100

Power
N/A
N/A

[2] L21-30

Kitchenette
N/A
N/A

TBD

Service Areas
room name
Dimensions
Specifications
No items found.
Rigging Specifications

20.5" Ground Support Truss System, max capacity 40 US tons or 80,000 lbs.

0.52m Ground Support Truss System, Capacity 36.28mt

Tech Packet .PDF
↓
Contact for .DWG
→
Max Capacity
40tns
36.28mt
Height to Ceiling
32'
9.75m
Height to Grid
26'11"
8.2m
Safety
Full Specifications
Dimensions

77' x 70', Clear Height 26'11", 5,390 sqft

Rigging
  • 20.5" Ground Support Truss System, Max Capacity 40 US Tons, 80,000 lbs
  • 26'11" to grid, 32' to ceiling
  • Grid: 14' x 13'0.5", 8' x 10" x 13'0.5", 14' x 19'3.5"
Rooms
  • Production Office, desks & data for 2 people, small lounge area
  • Mix Room
  • Private Restroom
  • Kitchenette
  • Add-on Office
Power
  • [1] 400A 3Ø 120/208V AC
  • [1] 200A 3Ø 120/208V AC
  • [1] 100A 3Ø 120/208V AC
  • [2] L21-30 30A 3Ø 120/208V AC services powering stage power and FOH PA
  • Common Dock [4] Shore Power – NEMA 14-50R Receptacle, 208V, 1Ø

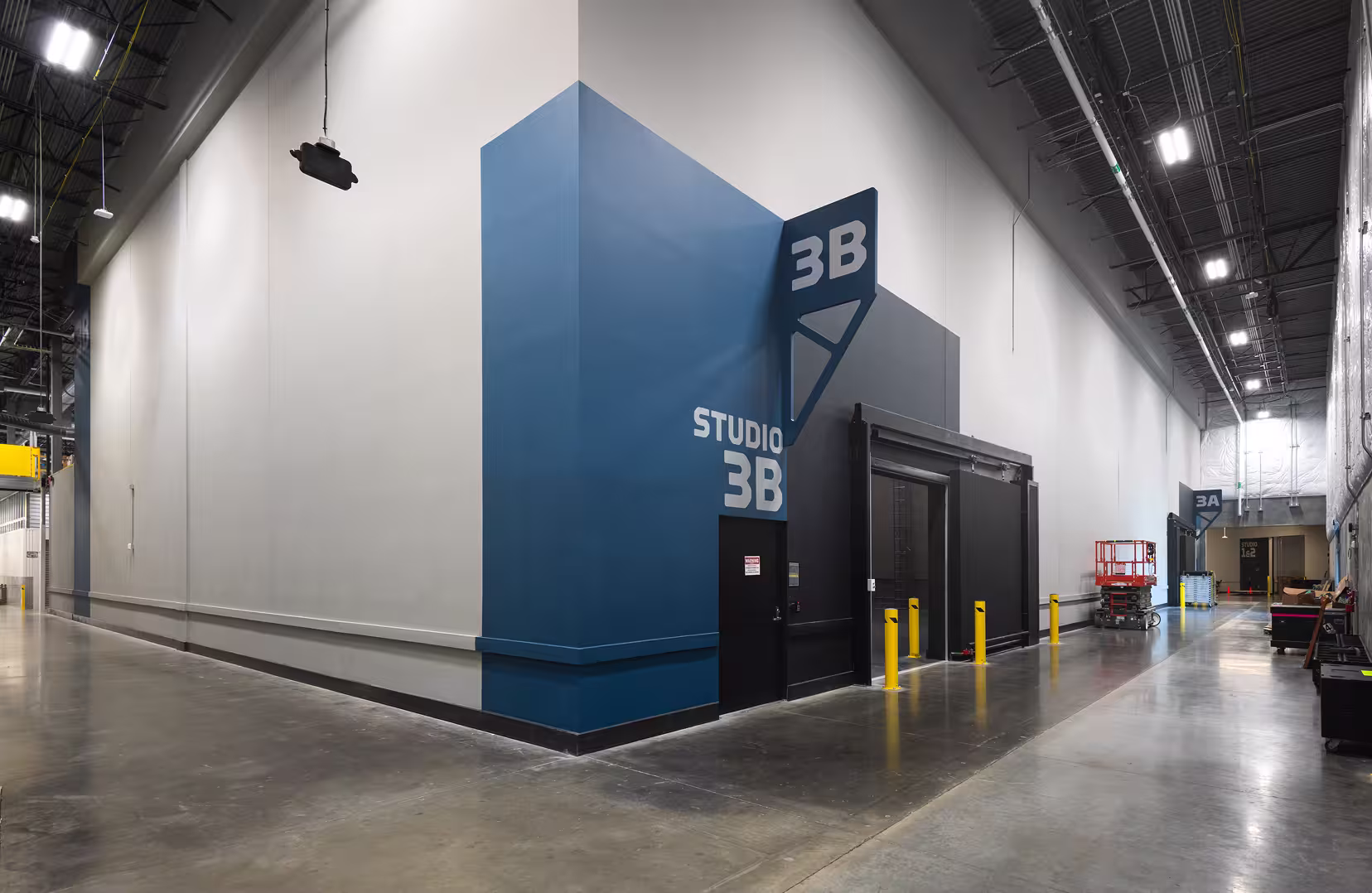

Load-in
  • Common dock, [1] 10' x 10' sliding sound door, [1] 42" x 84" single man door
  • Opens to shared, common hall with 14 docks, load in through a 10' x 10' soundproof door
Catering

Full Service Catering Available

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Soundcheck Building, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.

Dimensions

23.47 m x 21.34 m, clear height 8.20 m, 500.67 sq/m

Rigging
  • 52.07 cm Ground Support Truss System, Max Capacity 36.29 metric tons, 36,287 kg
  • 8.20 m to grid, 9.75 m to ceiling
  • Grid: 4.27 m x 3.97 m, 2.44 m x 0.25 m x 3.97 m, 4.27 m x 5.87 m
Rooms
  • Production Office, desks & data for 2 people, small lounge area
  • Mix Room
  • Private Restroom
  • Kitchenette
  • Add-on Office
Power
  • [1] 400A 3Ø 120/208V AC
  • [1] 200A 3Ø 120/208V AC
  • [1] 100A 3Ø 120/208V AC
  • [2] L21-30 30A 3Ø 120/208V AC services powering stage power and FOH PA
  • Common Dock [4] Shore Power – NEMA 14-50R Receptacle, 208V, 1Ø
Load-in
  • Common dock, [1] 3m x 3m sliding sound door, [1] 1.06m x 2.13m single man door
  • Opens to shared, common hall with 14 docks, load in through a 3.05m x 3.05m soundproof door
Catering

Full Service Catering Available

Data Services
Labor

Provided through Rock Force

Additional Space

More amenity space available on campus upon request. All rentals come with access to Soundcheck Building, including common area, gym, music shop, vendors, conference rooms, additional rehearsal space, and more.
